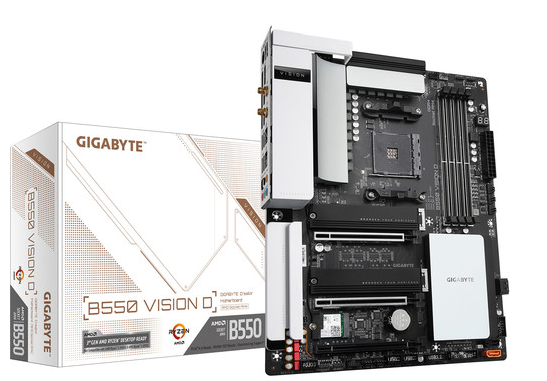

Gigabyte B550 VISION D Wi-Fi 6 AMD Motherboard
Product Id: 02.02.018.329
Brand
Gigabyte
Quick Overview
- Chipset - AMD B550
- Memory Max. - 128GB
- Memory Slot - 4
- Sockets Supported - AM4
- Supported CPU - AMD Ryzen 5000 Series/ AMD Ryzen 3rd Generation Processors and New Generation AMD Ryzen with Radeon Graphics processors
- Generation - Not Applicable
General
Brand
Gigabyte
Model
Gigabyte B550 VISION D
Body Color
Black
CPU
Chipset Brand
AMD
Chipset
AMD B550
Sockets Supported
AM4
Built-in Processor
No
Supported CPU
AMD Ryzen 5000 Series/ AMD Ryzen 3rd Generation Processors and New Generation AMD Ryzen with Radeon Graphics processors
Generation
Not Applicable
Memory Support
Memory Type
DDR4
Memory MHz
AMD Ryzen 5000 (5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133MHz), 3rd Gen (5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133MHz),
Memory Channel
Dual
Memory Slot
4
Memory Max.
128GB
Optane Memory Support
No
Storage
Storage Interface
6.0Gb/s
M.2/SSD Expansion Slot
2
M.2/SSD Expansion Slot Details
2 x M.2 Socket 3 (1 x M.2 (M key, type 2242/2260/2280/22110 SSDs SATA and PCIe 4.0 x4/x2 SSDs / SATA and PCIe 3.0 x4/x2 SSDs), 1 x M.2 (M key, type 2242/2260/2280/22110 SSDs SATA and PCIe 3.0 x4/x2 SSDs))
Graphics
Graphics
Integrated
Graphics Chipset
Integrated With Processor
Multi-GPU Support
AMD Quad-GPU CrossFire and 2-Way AMD CrossFire
PCI Express Slot
1 x PCI Express x16 slot (PCIEX16), 1 x PCI Express x16 slot (PCIEX8), 1 x PCI Express x16 slot (PCIEX4)
Audio & Video
Audio Chipset
Realtek ALC1220-VB
Audio Channel
2/4/5.1/7.1
Network & Connectivity
LAN Chipset
Dual Intel GbE LAN
LAN Speed (Mbps)
100/1000 Mbps
WiFi
Yes
WiFi Technology
Intel Wi-Fi 6 AX200, WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band, Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Bluetooth
Bluetooth 5
Ports
USB Port
2 x USB Type-C, 2 x USB 3.2 Gen 2 Type-A, 5 x USB 3.2 Gen 1, 4 x USB 2.0
VGA Port
No
DVI Port
No
HDMI Port
1
DisplayPort (DP)
No
IDE Port
No
SATA Port
4 x SATA
Thunderbolt
2
TPM Port
Yes
Technical Info
CrossFire Support
Yes
Sli Support
No
Raid Support
0, 1, 10
RGB Support
RGB
RGB Sync
RGB Fusion
RGB Connector
2 x RGB LED strip headers
Approx. Power Consumption
70W
Form Factor
ATX
Bios Information
BIOS Type
1 x 256 Mbit flash
BIOS Model
AMI UEFI BIOS
BIOS Version
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Compatibility
Supported Operating System
Windows 10
Warranty
Warranty
3 Year
Warranty Details
3 year
Additional Info
Feature
Support 3rd Gen AMD Ryzen Processors, Reliability ensuring by DDR4 ECC & Non-ECC memory with 4 physical DIMM slots, Multi-graphics configurations offer by dual PCIe 4.0/3.0 x16 and one PCIe 3.0 x16 slots, The limitless connectivity by dual USB Type-C with Titan Ridge, High-bandwidth and low-latency network support by dual Intel GbE LAN with cFosSpeed, Effective cooling solution design for the better thermal dissipation, Smart Fan 5 features hybrid fan headers and numerous temperature sensors for fan mode configuration, Q-Flash Plus Updates BIOS without Installing the CPU, Memory and Graphics Card
Others
1 x DisplayPort, 1 x CPU fan header, 1 x water cooling CPU fan header, 2 x addressable LED strip headers, 2 x RGB LED strip headers, 1 x SATA DOM power connector, 1 x Trusted Platform Module (TPM) header, 1 x serial port header, 1 x Clear CMOS jumper, 2 x temperature sensor headers, 1 x Q-Flash Plus button, 2 x SMA antenna connectors (2T2R), 5 x audio jacks, Wireless Communication module: Intel Wi-Fi 6 AX200, BLUETOOTH 5
Country Of Origin
Taiwan
Made in/ Assemble
China
N.B. Specification may differ with actual product. In that case, Ryans will execute full refund within 5 days.
Details
Features of Gigabyte B550 VISION D Motherboard In Bangladesh
Gigabyte B550 VISION D
Geared towards creative professionals dealing with heavy workloads, such as video editing and 3D rendering, the Gigabyte B550 VISION D Wi-Fi AM4 ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. Connect to the internet wirelessly with Wi-Fi 6 (802.11ax). Four memory slots support up to 128GB of dual-channel RAM, which can run at up to 5200 MHz (O.C.). The motherboard's clean, white design is complete with unconventional heatsinks that provide effective cooling. This motherboard features an ATX form factor, which fits in mid- and full-tower cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, Thunderbolt 3, DTS:X Ultra, Smart Fan 5 support, and Gigabyte Q-Flash Plus.
PCIe 4.0 Bandwidth
This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
NVMe PCIe 4.0/3.0 M.2 Connector
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity, delivering up to 64 Gb/s data transfer speed.
Thunderbolt 3
Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect two 4K displays simultaneously. Additionally, you can daisy chain up to six devices to a single Thunderbolt 3 port.
Realtek LAN
Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure highest network priority.
Smart Fan 5
Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid-cooling friendly.
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory, and graphics card with Gigabyte Q-FLASH PLUS. You don't have to install components or enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file on the USB flash drive, then press the dedicated Q-FLASH PLUS button.
What is the price of Gigabyte B550 VISION D Motherboard In Bangladesh?
The price of Gigabyte B550 VISION D Motherboard not mentioned for stock unavailability. The price may vary due to your customization and product availability. You can buy Gigabyte B550 VISION D Motherboard from our website or visit our showrooms nearby.
