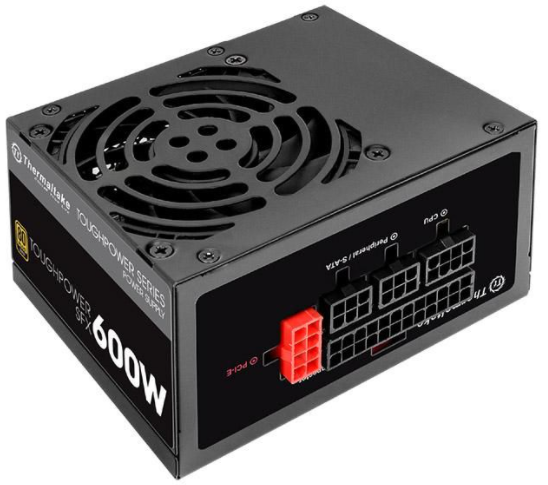

Thermaltake Toughpower SFX 600W Fully Modular 80 Plus Gold Certified Power Supply #STP-0600F-G

*Image may differ with actual product's layout, color, size & dimension. No claim will be accepted for image mismatch.

Thermaltake Toughpower SFX 600W Fully Modular 80 Plus Gold Certified Power Supply #STP-0600F-G

Product Id: 55.01.269.121

Regular Price  10,800
Special Price  10,000

Delivery time?

Quick Overview

Thermaltake Toughpower SFX
Series - Toughpower Series
PSU Category - Fully Modular
Type - ATX 12V v2.4
Maximum Power - 600W
Brand
Thermaltake
Model
Thermaltake Toughpower SFX
Series
Toughpower Series
PSU Category
Full Modular
Type
ATX 12V v2.4
Maximum Power
600 Watt
Input Voltage
100V - 240V
Input Frequency Range
50Hz - 60Hz
Input Current
4.5A - 9A
Fan Size
80mm
Zero RPM Fan Mode
Yes
Noise Level
29.94db
Efficiency
90% Typical Load
80 Plus Rating
80 Plus Gold
ATX Main Connectors
1
EPS Connectors
1
PCIe Connectors
2
SATA Power Connectors
3
4-Pin Peripheral Connectors
2
Floppy Connectors
1
PFC (Power Factor Correction)
Active PFC
Peak Output Capacity
720W
Hold Up Time
>12msec at 75% of full load
Cable Type
Flat black cables
Operating Temperature
0 degree C - +40 degree C
Operating Humidity
20% - 85% non-condensing
Storage Temperature
-20 degree C - +90 degree
Storage Humidity
5% - 95% non-condensing
MTBF
120,000 hrs
Form Factor
SFX
Dimensions
125 x 100 x 63.5mm
Color
Black
Regulatory / Safety Approval
CE, FCC, UL, Bauart Mark+CB, EAC
Others
Zero RPM Smart Fan, Fully Modular Low-Profile Flat Cables, 100% High Quality Japanese Capacitors, Massive and Dedicated +12V Output
Specialty
Incorporating various high-quality components, Toughpower SFX 600W Gold saves energy through its 80 PLUS Gold certified high efficiency of up to 90% and accommodates any mainstream build. The included matte black SFX to ATX adapter bracket enables users to easily install SFX Power supply into ATX chassis. Toughpower SFX 600W Gold is designed with two-way application by the compatibility of both the latest Intel SFX 12V 3.3 and ATX 12V 2.4 standard. To maximally reduce undesired noise, Toughpower SFX 600W Gold is designed with an 80mm temperature controlled Zero RPM Smart Fan. Fully modular Toughpower SFX 600W Gold offers cables selection for users while powering the system at an advantageous voltage.
Part No
STP-0600F-G
Warranty
1 Year Warranty + 2 Year Service Warranty
Country Of Origin
Taiwan
Made in/ Assemble
China

Details

Toughpower SFX 600W Gold



Thermaltake Toughpower SFX 600W Gold

Incorporating various high-quality components, Toughpower SFX 600W Gold saves energy through its 80 PLUS Gold certified high efficiency of up to 90% and accommodates any mainstream build. The included matte black SFX to ATX adapter bracket enables users to easily install SFX Power supply into ATX chassis. Additionally, an embedded temperature controlled Zero RPM Smart Fan System is optimized to deliver excellent airflow at an exceptionally low noise level. Fully modular flat cable design is convenient for cable management. Moreover, the powerful single +12V rail enables non-stop usage with stable and reliable performance.




80 PLUS Gold Certified and Kaby Lake Ready

Deliver up to 90% efficiency under real world load conditions to promise lowest power losses. Additionally, Toughpower SFX 600W Gold has been optimized to work with Intel’s new 6th-generation Kaby Lake processors to achieve maximum energy savings.

Universal Compact Design for All Mainstream PC Cases – SFX to ATX PSU Adapter Bracket

Toughpower SFX 600W Gold is designed with two-way application by the compatibility of both the latest Intel SFX 12V 3.3 and ATX 12V 2.4 standard. Toughpowr SFX Series has included a matte black SFX to ATX adapter bracket which helps users easily install an SFX power supply into an ATX, Micro-ATX or Mini-ITX chassis. In addition, with the compact design, Toughpower SFX Series allows better airflow inside the chassis as well as leaves more space for users to utilize.

Zero RPM Smart Fan

To maximally reduce undesired noise, Toughpower SFX 600W Gold is designed with an 80mm temperature controlled Zero RPM Smart Fan. The fan will not operate when the PSU is at low working loads.

Fully Modular Low-Profile Flat Cables

Fully modular Toughpower SFX 600W Gold offers cables selection for users while powering the system at an advantageous voltage. Low-profile flat black cable can make cable management easier, reduce clutter and increase airflow inside the chassis.



Brand - Thermaltake, Model - Thermaltake Toughpower SFX, Series - Toughpower Series, PSU Category - Fully Modular, Type - ATX 12V v2.4, Maximum Power - 600 Watt, Input Voltage - 100V - 240V, Input Frequency Range - 50Hz - 60Hz, Input Current - 4.5A - 9A, Fan Size - 80mm, Zero RPM Fan Mode - Yes, Noise Level - 29.94db, Efficiency - 90% Typical Load, 80 Plus Rating - 80 Plus Gold, ATX Main Connectors - 1, EPS Connectors - 1, PCIe Connectors - 2, SATA Power Connectors - 3, 4-Pin Peripheral Connectors - 2, Floppy Connectors - 1, PFC (Power Factor Correction) - Active PFC, Peak Output Capacity - 720W, Hold Up Time - >12msec at 75% of full load, Cable Type - Flat black cables, Operating Temperature - 0 degree C - +40 degree C, Operating Humidity - 20% - 85% non-condensing, Storage Temperature - -20 degree C - +90 degree, Storage Humidity - 5% - 95% non-condensing, MTBF - 120,000 hrs, Form Factor - SFX, Dimension (W/H/D) - 125 x 100 x 63.5mm, Color - Black, Regulatory / Safety Approval - CE, FCC, UL, Bauart Mark+CB, EAC, Others - Zero RPM Smart Fan, Fully Modular Low-Profile Flat Cables, 100% High Quality Japanese Capacitors, Massive and Dedicated +12V Output, Specialty - Incorporating various high-quality components, Toughpower SFX 600W Gold saves energy through its 80 PLUS Gold certified high efficiency of up to 90% and accommodates any mainstream build. The included matte black SFX to ATX adapter bracket enables users to easily install SFX Power supply into ATX chassis. Toughpower SFX 600W Gold is designed with two-way application by the compatibility of both the latest Intel SFX 12V 3.3 and ATX 12V 2.4 standard. To maximally reduce undesired noise, Toughpower SFX 600W Gold is designed with an 80mm temperature controlled Zero RPM Smart Fan. Fully modular Toughpower SFX 600W Gold offers cables selection for users while powering the system at an advantageous voltage., Part No - STP-0600F-G, Warranty - 1 Year Warranty + 2 Year Service Warranty, Country of Origin - Taiwan, Made in/ Assemble - China

Power Supply Units [PSUs] are often overlooked during a PC build despite its crucial part in determining the reliability of the entire system. All your PC components depend on PSU for power. Even if you’re on a tight budget, you don’t want to make any compromises when it comes to the power supply. We’re here to discuss factors you need to consider before purchasing the PSU for your rig.


Factors need to be considered before purchasing a PSU -


Wattage Requirement: There is no point in buying a PSU with way more potential power than you’ll ever use. A PSU calculator web page or software can be handy in finding a rough estimation about the wattage requirement of your build. However, it is not recommended purchasing a PSU just above your system's power needs. A PSU delivers maximum efficiency with 40 to 60 percent load. Besides, the performance of a PSU declines with time. So, you better opt for a PSU capable of taking you through your next few upgrades for multiple years.


Physical Dimensions of the PC Case: You must buy a PSU that fits inside your PC case. Higher-wattage PSUs tend to be a bit longer [compared to typical 5.5 inch PSUs] to house the additional power components they need. This may create issues with cable routing or even with placing other internal components inside the case. So, it is a must to go for a PSU compatible with your PC case.


Type and Number of Connectors: Different PSUs come with different types of power connectors, including 20/24-pin power, 4-pin ATX12V, 4-pin Molex, floppy, SATA, 6-pin PCI-Express graphics and 8-pin PCI-Express graphics. You must get a power supply with connectors your PC components required. If you don’t find required connectors in a PSU within your budget, check what cable adaptors the PSU includes to extenuate the problem.


Modular or Non-Modular: If you have limited space in your case, it’s worth paying extra for a modular power supply. A modular PSU let you plug in the power cables you need and leave the extra ones. This facility will help reducing cable clutter that can hinder airflow and heat up the atmosphere inside the case.


Power Efficiency: PSUs convert voltages from wall outlets to lower levels as required by the PC. The power supply wastes some power as heat during the conversion. A PSU with higher efficiency means it can power the PC with minimum loss of electricity. Anything 80% and above is good. With a more efficient PSU, you can end up saving money as it will require less electricity to power your PC. The "80 Plus" Certification shows that the power supply has been tested to have 80% efficiency at every load. There are higher tiers of 80 Plus that show even higher efficiency such as 80+ Bronze or Silver. As the efficiency of the PSU gradually drops during the lifespan of the PSU, it is recommended to opt for a PSU with the maximum efficiency possible as long as it agrees with your budget.
